PE chemical tank – 1000L
Features, technical specifications, drawings in the product catalog:
MC Model:
Product Code | Manhole Diameter (mm) | Tank Diameter (mm) | Barrel Height (mm) | Total Height (mm) |
MC-40L | 100 | 360 | 420 | 470 |
MC-50L | 100 | 390 | 420 | 490 |
MC-60L | 150 | 330 | 660 | 690 |
MC-100L | 120 | 460 | 660 | 740 |
MC-200L | 120 | 570 | 890 | 920 |
MC-300L | 200 | 710 | 760 | 875 |
MC-500L | 200 | 790 | 820 | 1020 |
MC-800L | 340 | 1030 | 980 | 1150 |

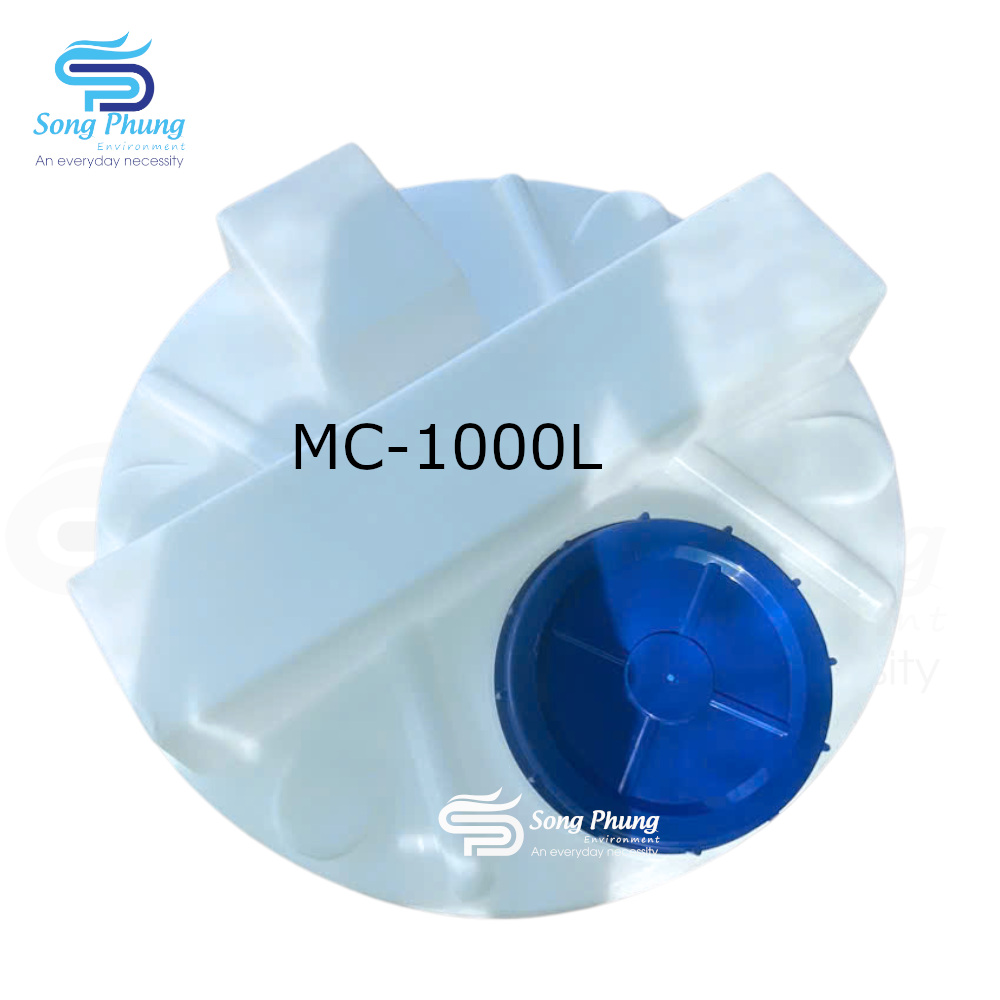

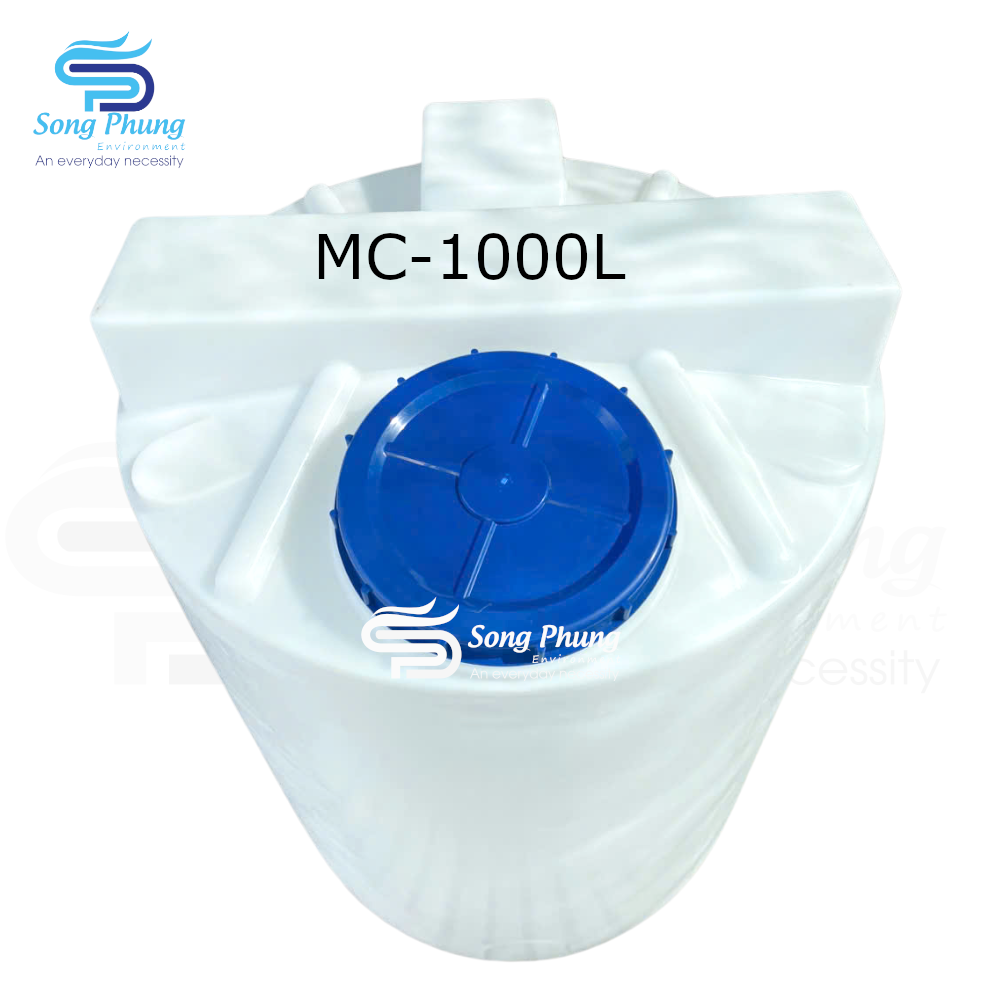

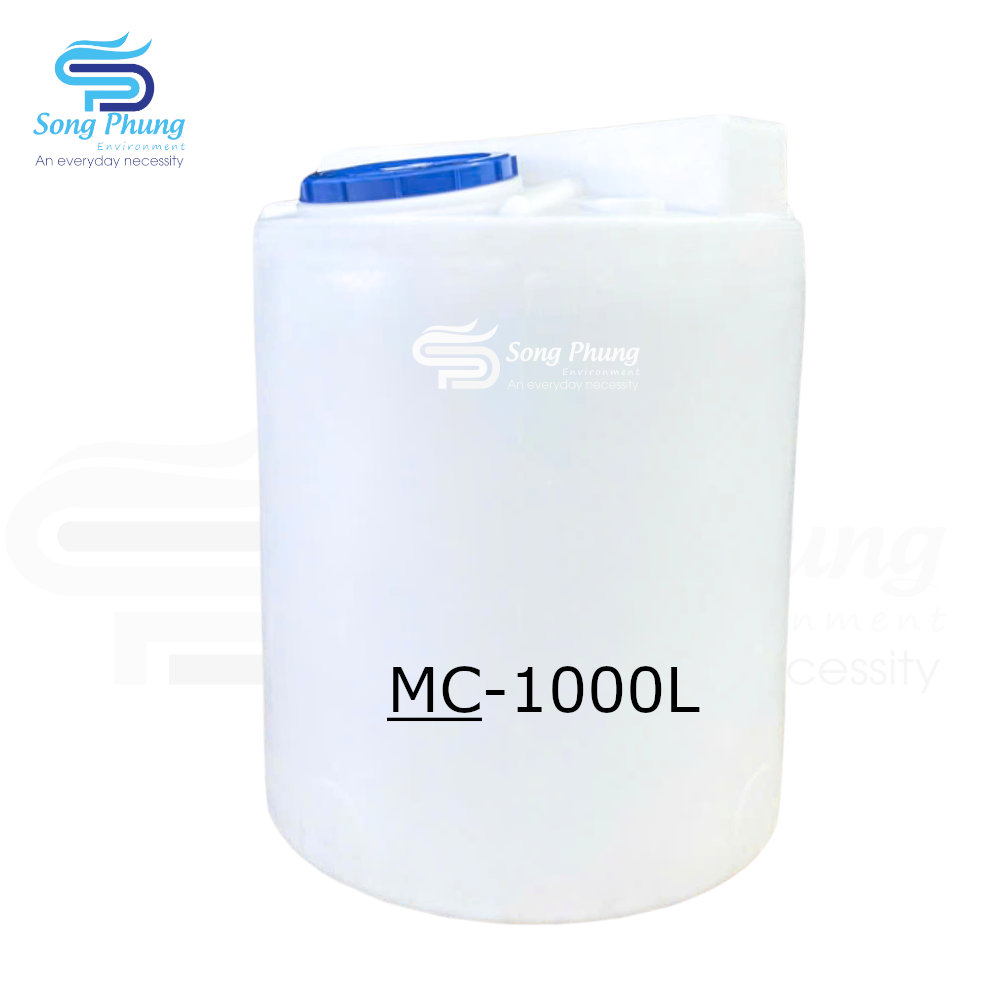

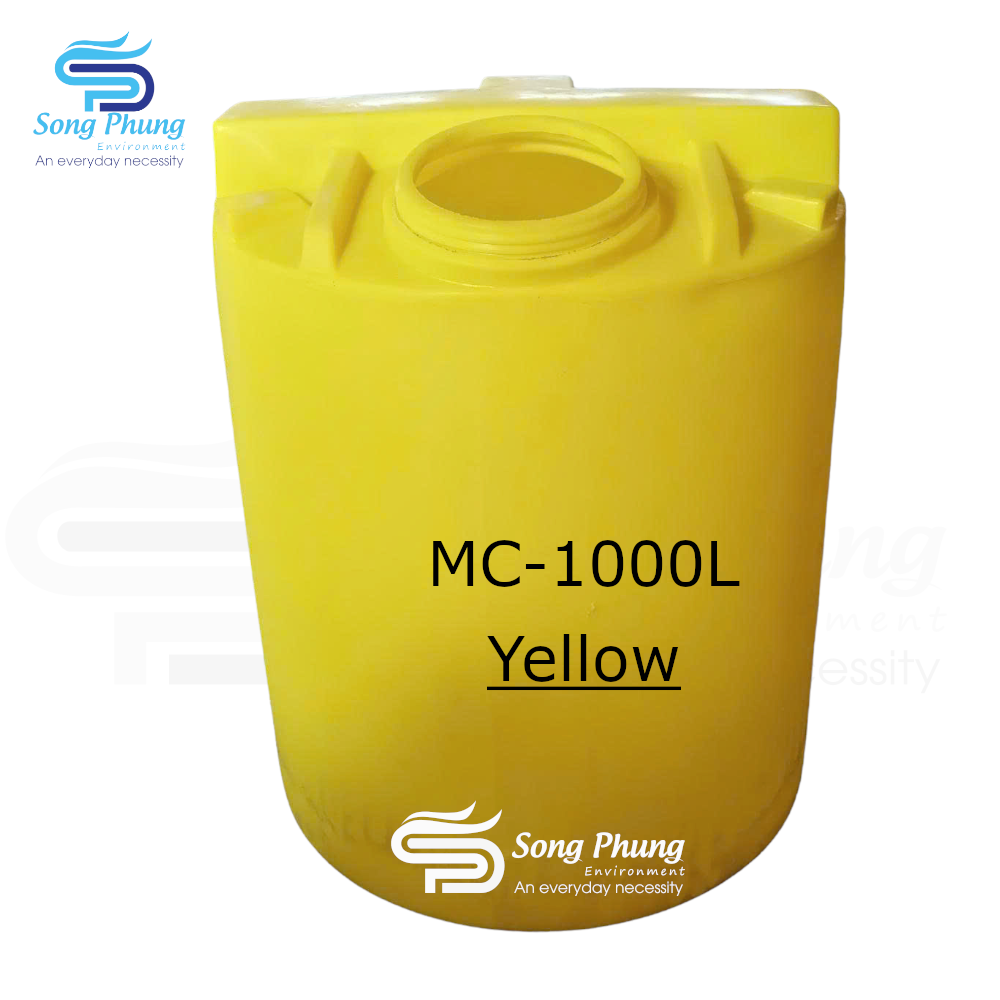

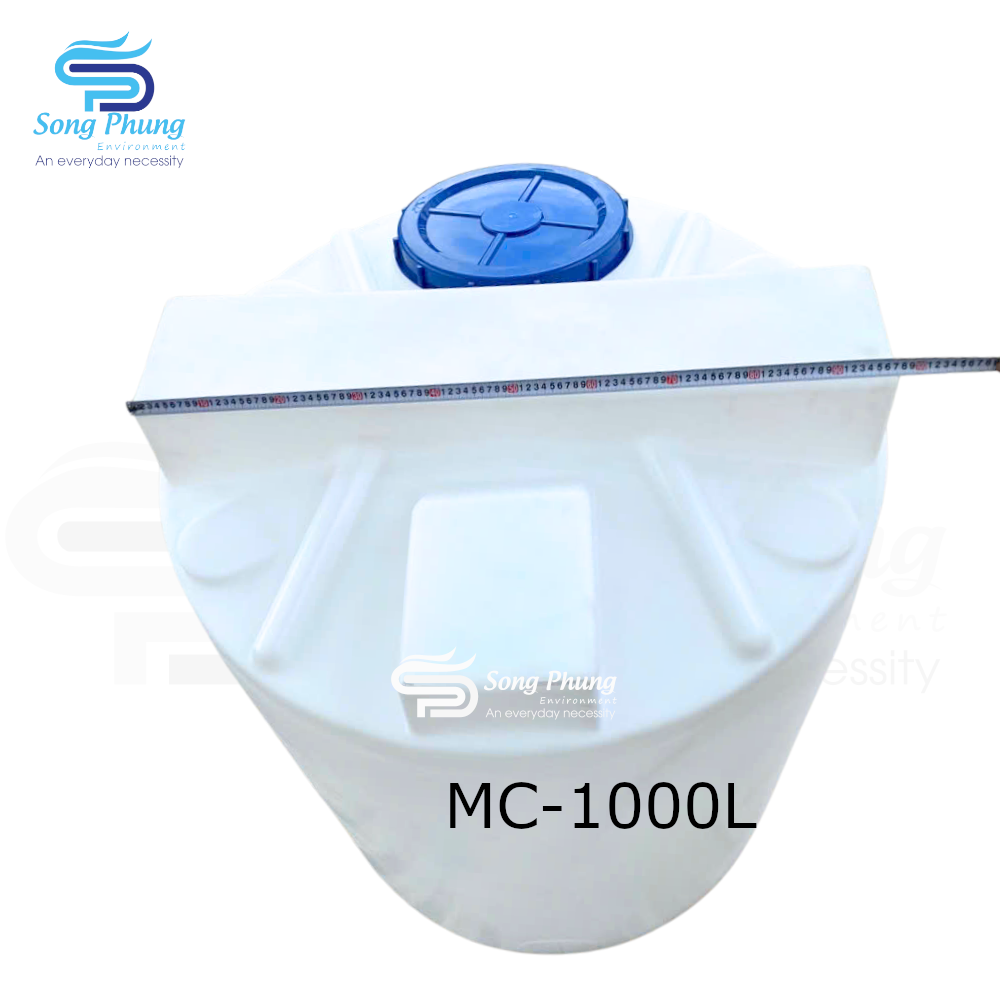

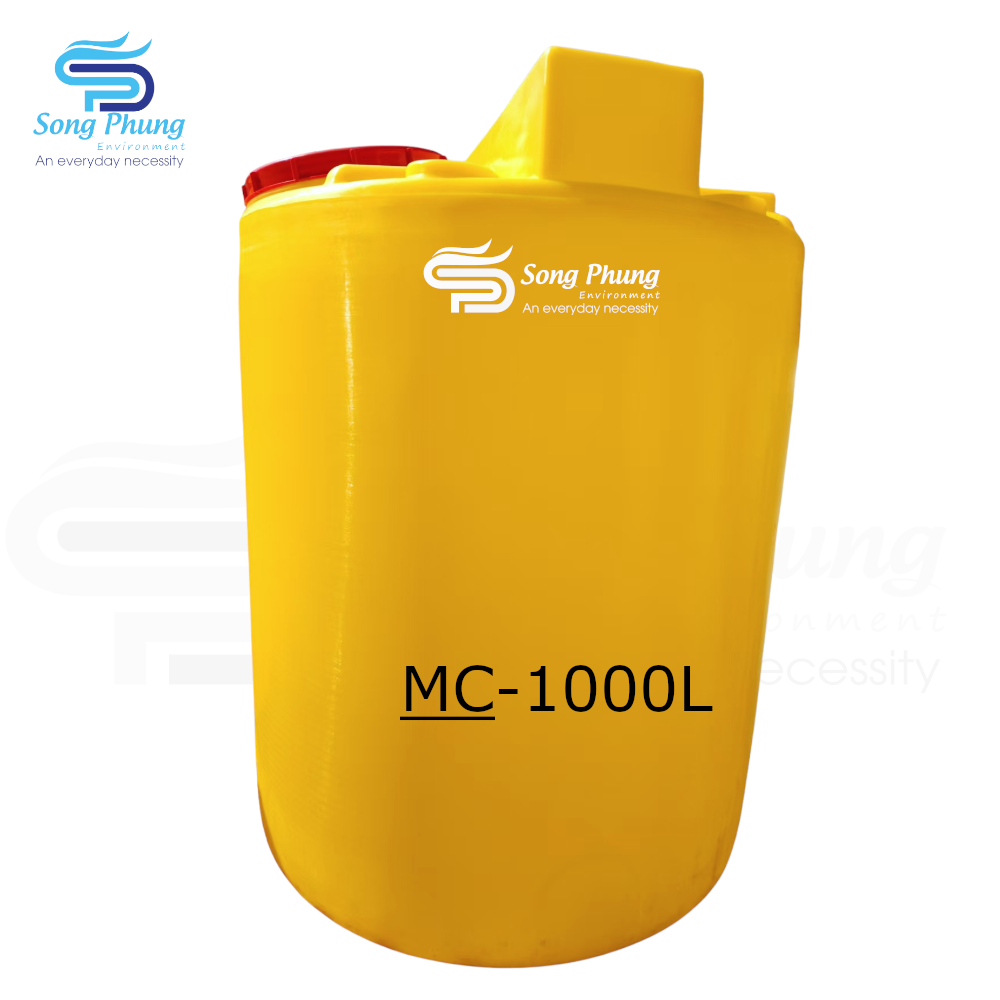

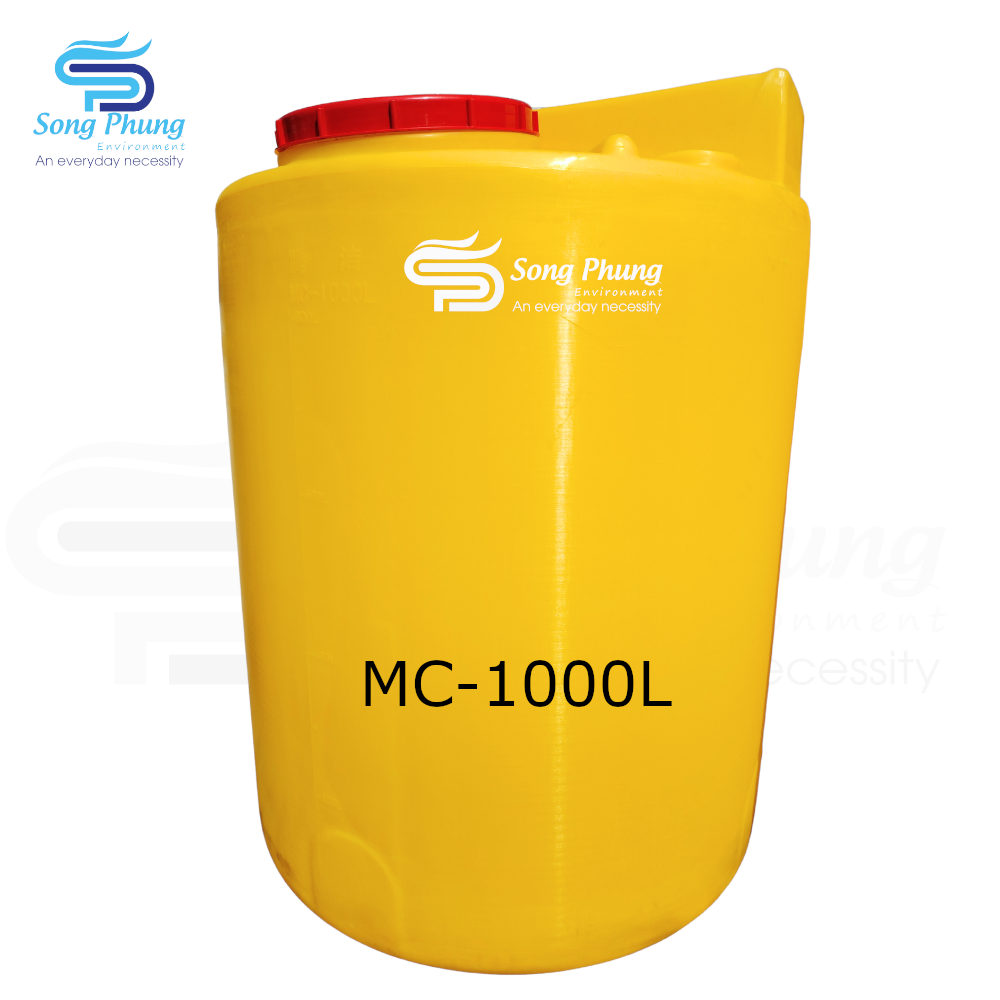

MC-1000L | 380 | 1030 | 1110 | 1300 |
MC-1200L | 420 | 1030 | 1100 | 1180 |
MC-2000L | 380 | 1200 | 1400 | 1600 |
MC-3000L | 380 | 1300 | 1450 | 1700 |
MC-4000L | 380 | 1750 | 1800 | 1950 |
MC-5000L | 380 | 1750 | 1900 | 2100 |
MC-6000L | 380 | 1860 | 2180 | 2450 |
MC-8000L | 650 | 2000 | 2120 | 2520 |
MC-10000L | 380 | 2200 | 2400 | 2600 |
MC-15000L | 380 | 2580 | 2800 | 3400 |
MC-20000L | 380 | 2680 | 3200 | 3900 |

MY Model:
Product Model | Diameter (mm) | Height (mm) | Volume (L) | Thickness (mm) |
MY-40L | Ø360 | 430 | 40 | 3.5 |
MY-100L | Ø470 | 830 | 100 | 6.4 |
MY-120L | Ø510 | 740 | 120 | 7 |
MY-130L | Ø470 | 1010 | 130 | 6.9 |
MY-180L | Ø510 | 1000 | 180 | 6.7 |
MY-200L (I) | Ø470 | 1520 | 200 | 6.8 |
MY-200L (II) | Ø580 | 920 | 200 | 6.8 |
MY-300L (I) | Ø705 | 970 | 300 | 4.5 |
MY-300L (II) | Ø770 | 850 | 300 | 6 |
MY-500L | Ø800 | 1000 | 500 | 5 |

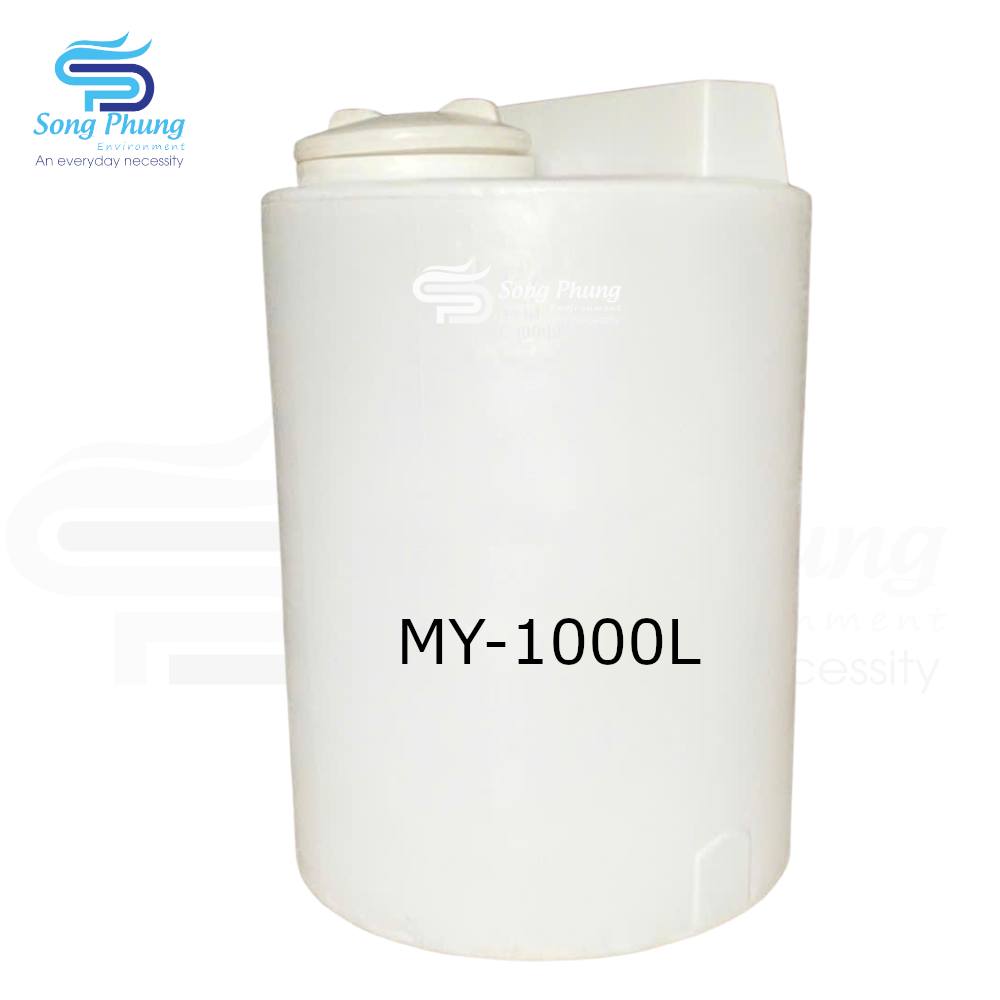

MY-1000L | Ø1000 | 1260 | 1000 | 6.5 |
MY-1500L | Ø1200 | 1350 | 1500 | 6.5 |
MY-2000L | Ø1360 | 1420 | 2000 | 7.5 |
MY-3000L | Ø1630 | 1685 | 3000 | 9.5 |
MY-5000L | Ø2000 | 1780 | 5000 | 10 |

Advantages of PE chemical tank – 1000L
- Material: using virgin polyethylene (PE) as the main raw material.
- The chemical tank is not toxic to users and safe for clean water.
- PE chemical tank are lightweight and durable, easy to handle, shock-proof, impact-resistant, and leak-proof.
- Good resistance to all types of acids and bases with very good corrosion resistance.
- Beautiful design with high aesthetics: Beautiful compact shape, smooth inside and outside, no welding, seamless.
- Easy to clean: Not easy to get dirty, can easily remove dirt.
- Economical and durable: very difficult to break.
- Cold resistance: Heat resistance and cold resistance, high temperature resistance (80°C), Cold resistance (-40°C).
Application of PE chemical tank – 1000L
- Chemical tank are chemical containers widely used in the chemical industry.
- They come in a variety of sizes and shapes and are used for static storage, handling, mixing and transport of both raw materials and finished chemical products.
- Contains chemicals and corrosive solutions
- Contains clean water and wastewater
- Dilute the solvent
Offers, promotions, details of accompanying accessories (if any)
- Song Phung is one of the reputable and long-standing importers and distributors of PE plastic tank containing chemicals in the Vietnamese market.
- The price of PE chemical tank is distributed by Song Phung at the lowest price on the market

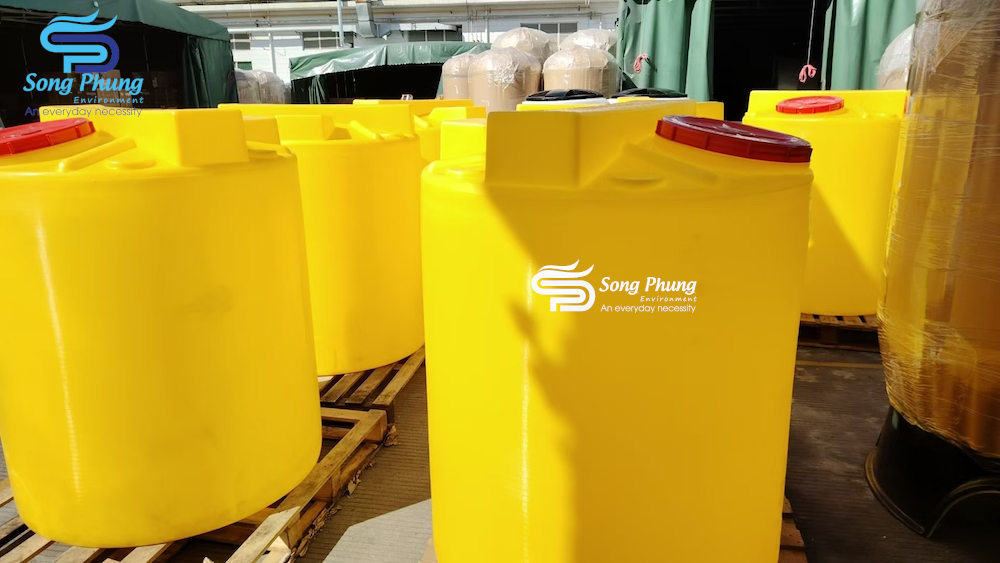

- PE chemical tank products are always available in the warehouse
Reference images of some chemical systems using PE chemical tanks:
