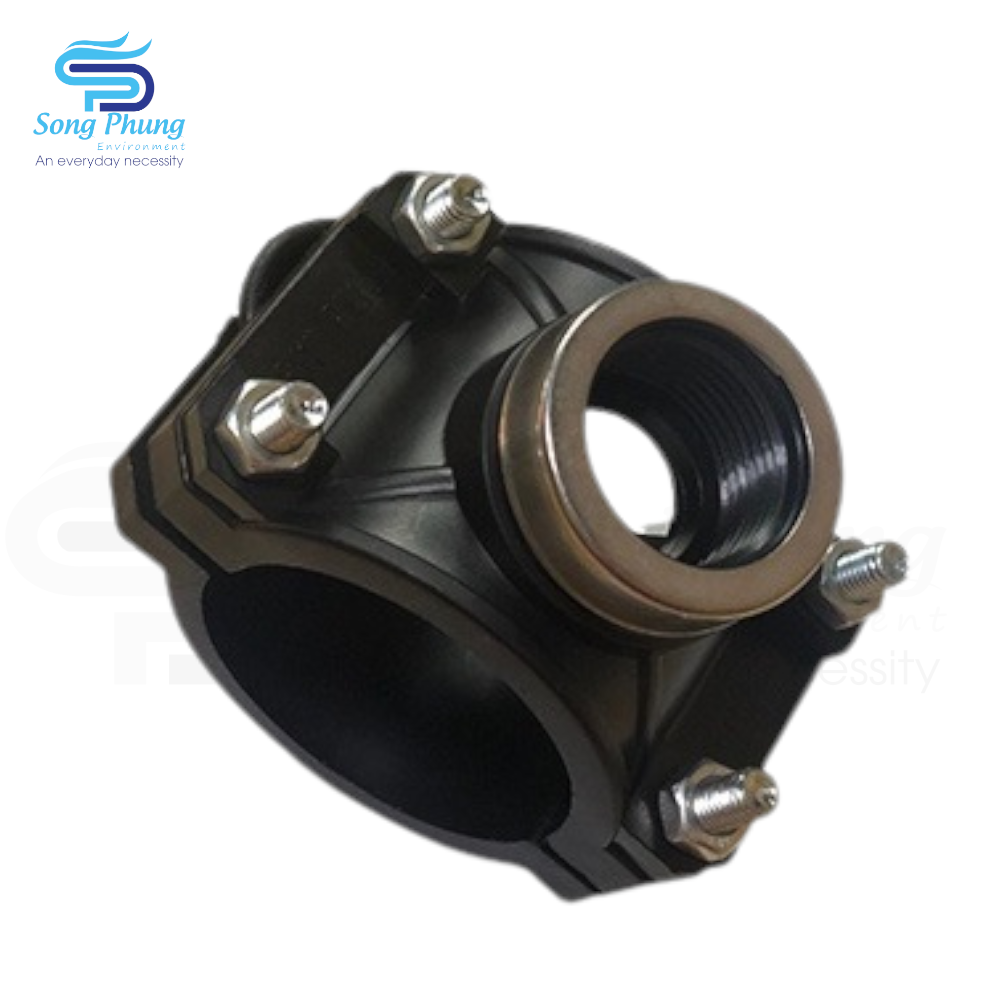

HDPE camp saddle (High-Density Polyethylene) is an accessory used to extract the main water line from any position on the entire pipeline to a smaller branch pipe without having to cut the main pipe to install a 3-way or 4-way tee, suitable for the construction and installation of civil water lines and works.

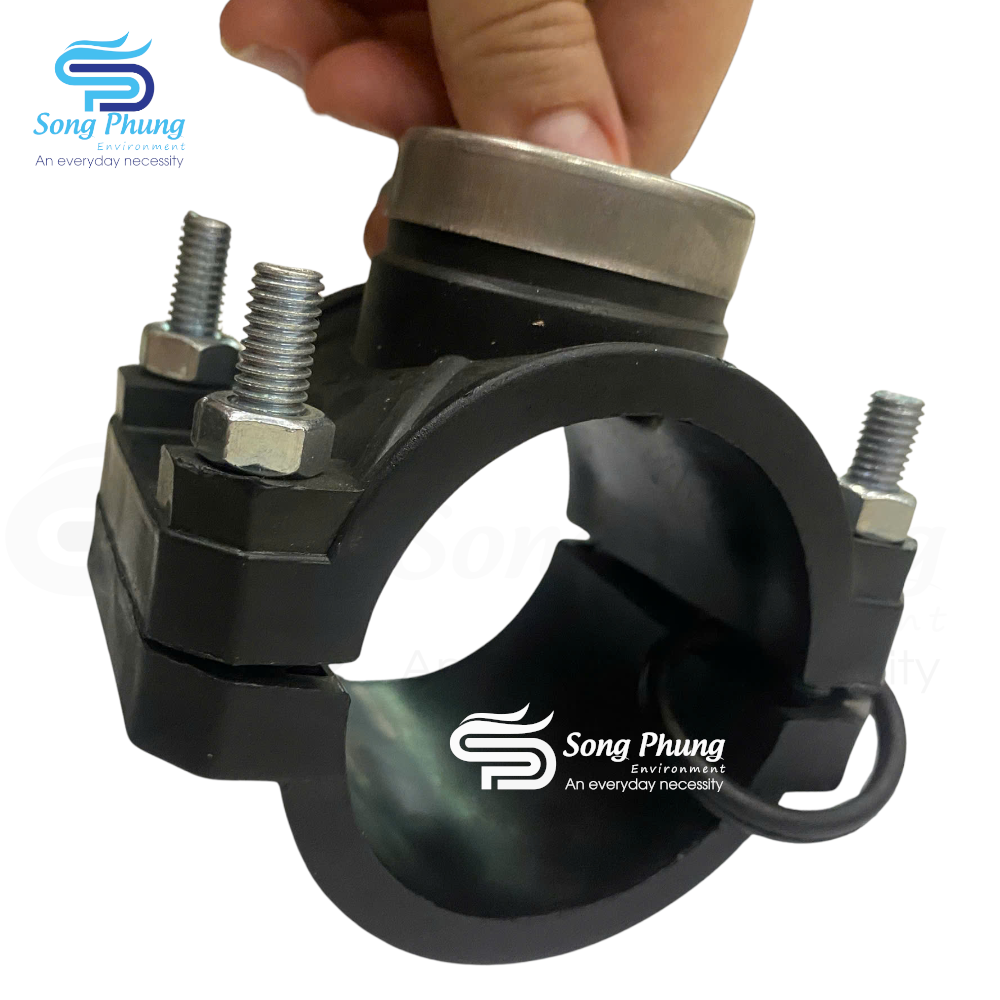

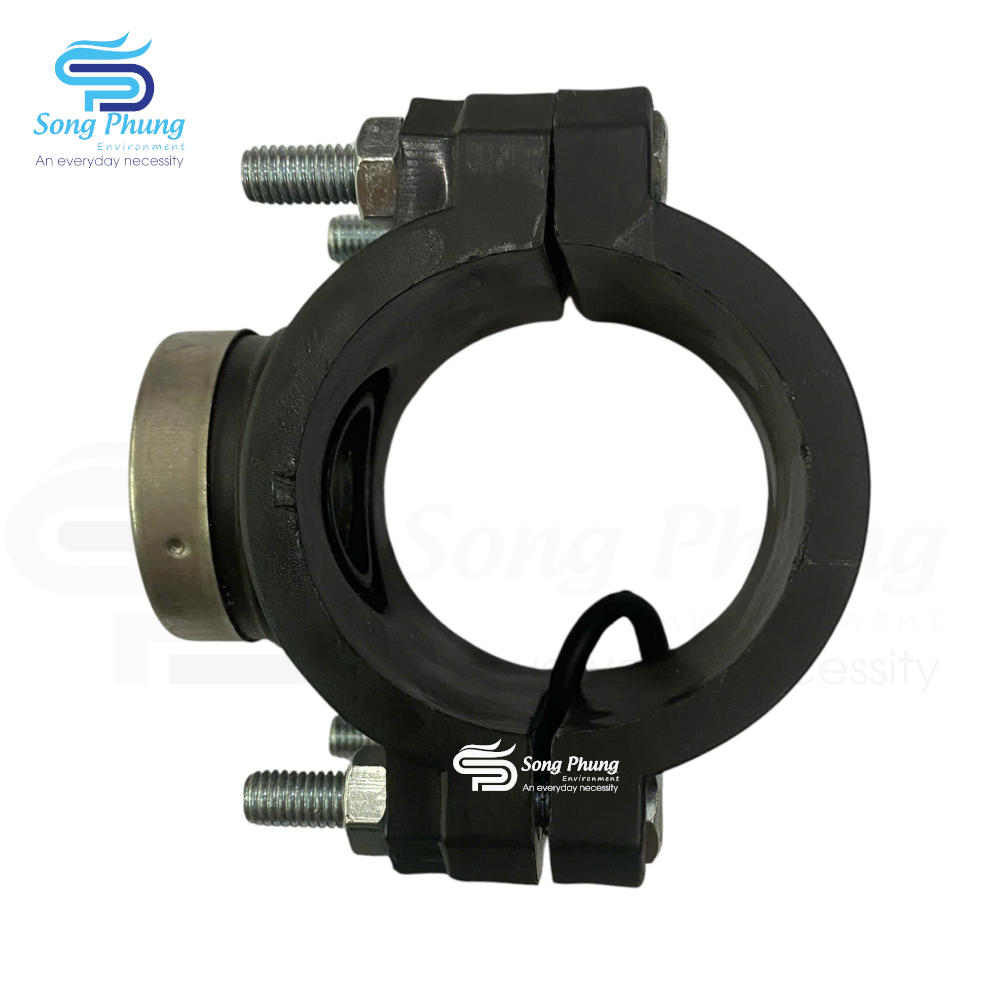

It consists of two halves of clamps around the main pipe, usually fixed with bolts and has a connection point for the branch line. This allows adding new pipes without having to cut and weld the main line.
Features, technical specifications, cutting drawings of HDPE Clamp saddle:
SPECIFICATION
Max pressure: PN16
25 x 1/2”
32 x 1/2”
40 x 1/2”
50 x 1/2”
63 x 1/2”
75 x 1/2”
90 x 1/2”
110 x 3/4”
125 x 3/4”
140 x 1/2”
160 x 1/2”
200 x 1”
25 x 3/4”
32 x 3/4”
40 x 3/4”
50 x 3/4”
63 x 3/4”
75 x 3/4”
90 x 3/4”
110 x 1/2”
125 x 1.1/4”
140 x 3/4”
160 x 3/4”
200 x 1.1/2”
32 x 1”
40 x 1”
50 x 1”
63 x 1”
75 x 1”
90 x 1”
110 x 1.1/4”
125 x 1.1/2”
140 x 1”
160 x 1”
200 x 2”
63 x 1.1/4”
75 x 2”
90 x 1.1/4”
110 x 1.1/2”
125 x 2”
140 x 1.1/4”
160 x 1.1/4”
63 x 1.1/2”
90 x 1.1/2”
110 x 2”
140 x 1.1/2”
160 x 1.1/2”
90 x 2”
140 x 2”
160 x 2”
Operating principle of HDPE Clamp saddle product

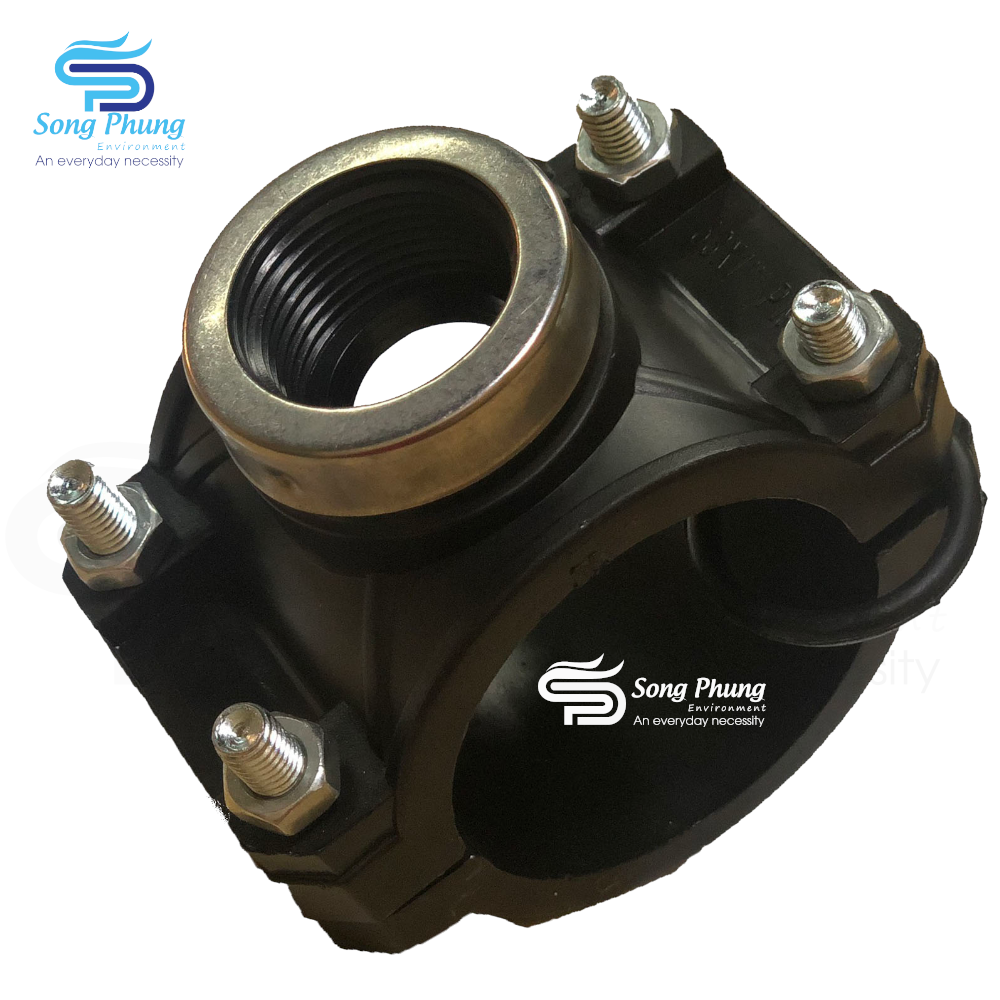

The calmp saddle is usually made up of two parts that clamp around the main pipe, often with a rubber gasket to ensure a waterproof connection. Bolts and nuts are used to secure the two halves together.

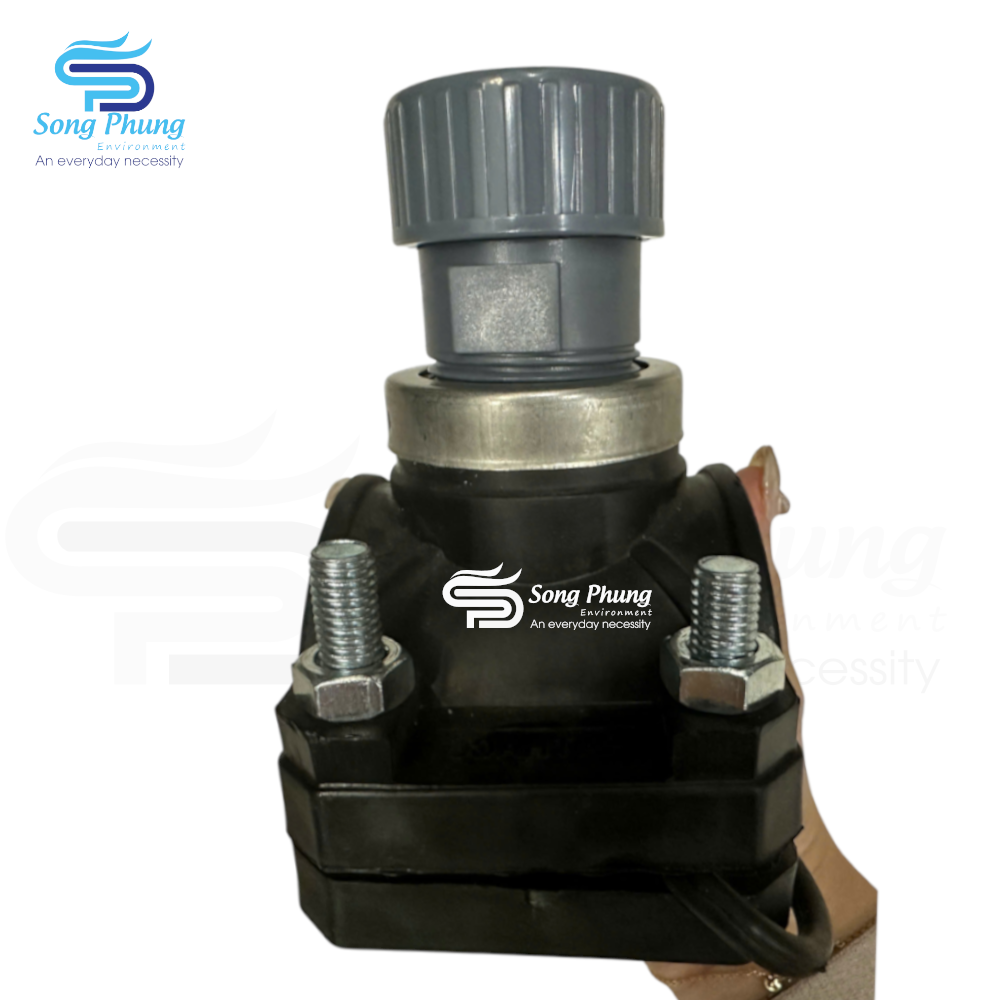

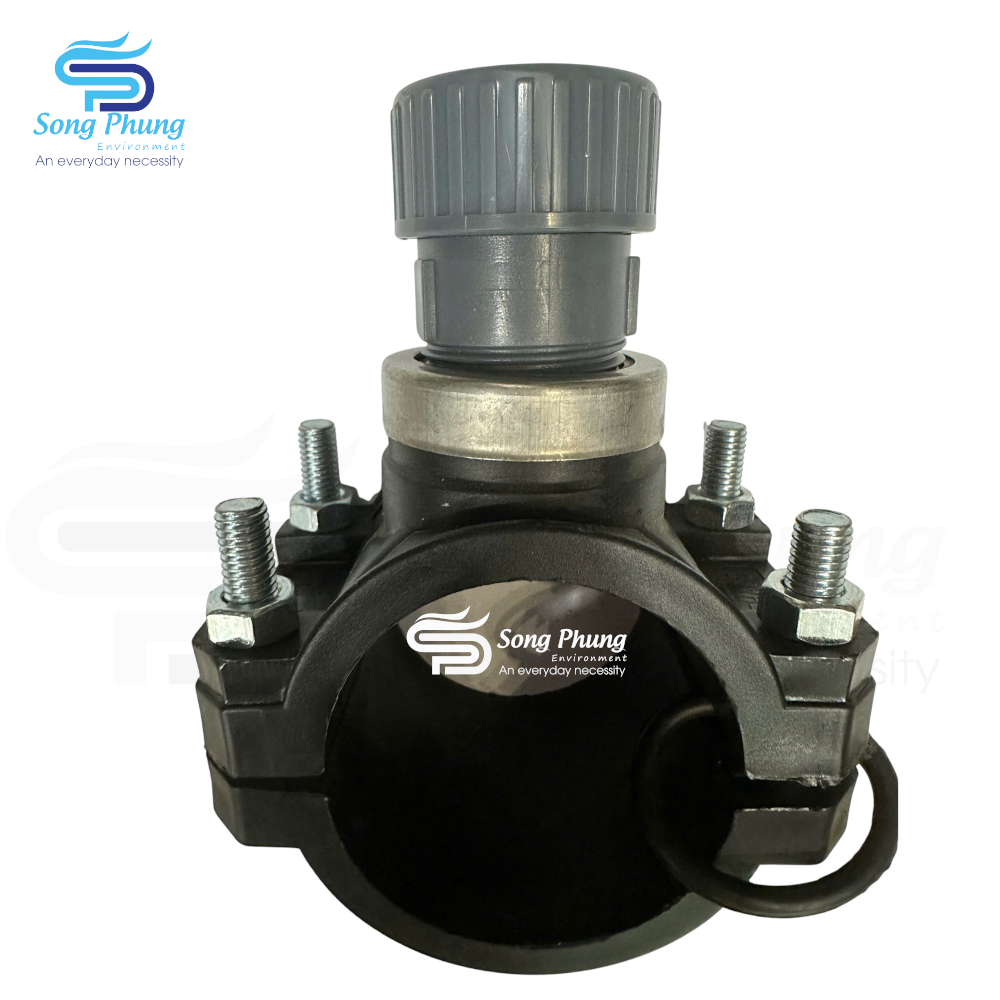

Dai khoi thuy lap van chong ap am
Application of clamp saddle:
Clamp saddle are commonly used in irrigation systems, water supply networks and other applications where branching from existing HDPE pipes is required.
In filter system installations, clamp saddle are used to:
Install negative pressure valves for filter tanks and filter systems
Make chemical injection lines into the main pipe system
Make air vent/vent valve installation locations on top of tanks and pipes
Branch main pipes to secondary pipes
Prevent temporary leaks and water leaks
Advantages:
Easy to install: the starter collar allows branch lines to be added without cutting and welding the main pipe.
Waterproof: Designed to create a watertight, waterproof seal between the main pipe and the branch line.
Reusable: Multiple clamps can be reused, providing flexibility for changes in the piping system.
Instructions for installing the clam saddle on filtration systems
FY-1 negative pressure valve is installed on the top of the filter tank, where water is supplied to the filter tankFY-1 negative pressure valve is installed on the top of the filter tank, where water is supplied to the filter tank
Product is waiting for user manual to be updated Please contact the technical department for support and instructions for use:
